Ceiling types can affect how temporary air conditioning is installed in a commercial building. For many portable air conditioners, ceiling access may influence where hot-air ducting can be routed and how heat is rejected from the conditioned space.

For many air-cooled portable air conditioners, the heat removed from the room needs to be discharged somewhere outside the conditioned space. Depending on the building, this may involve ducting through a window, into a suitable ceiling void, to a plant area or directly outdoors.

Knowing what type of ceiling is installed can help the Aircon Rentals team understand:

• whether there is accessible ceiling space
• whether ceiling tiles can provide access for temporary ducting
• how difficult the installation may be
• where hot-air ducting could potentially be routed
• whether another type of temporary cooling system may be more suitable

If you are arranging portable air conditioner hire, photographs of the ceiling, windows and surrounding room can help our team assess the installation options before equipment arrives.

What type of ceiling do you have?

Select the image below that most closely matches the ceiling at your site.

Then keep your existing image grid:

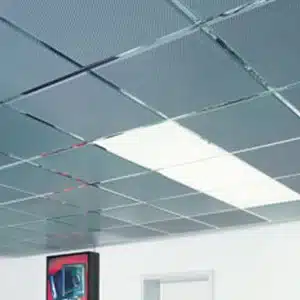

Metal Tile Ceiling

Metal ceiling tiles are commonly installed as part of accessible ceiling systems in commercial buildings.

When planning temporary cooling, the important question is not simply whether the ceiling is metal, but whether there is an accessible and suitable void above it and whether the proposed route can accommodate temporary ducting.

What to send us: A photograph showing the ceiling tiles, nearby walls and the wider room.

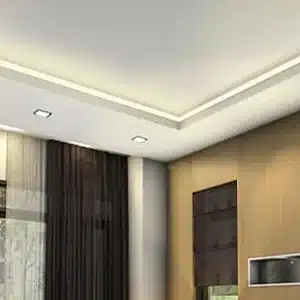

Plaster Ceiling

Plaster ceilings generally do not provide the same easy access as removable ceiling tiles.

If an air-cooled portable unit requires hot-air exhaust, another route such as a window, doorway, existing opening or another appropriate heat-rejection location may need to be considered.

Do not cut or alter a ceiling for temporary air conditioning without the appropriate building approval.

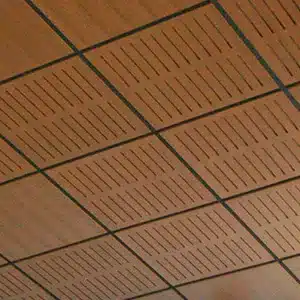

Wooden Tile Ceiling

Wooden ceiling tiles vary considerably in construction.

Before planning any ducting route, the ceiling should be assessed to determine whether the panels are removable and what space or services are located above them.

A photo of both the ceiling and the room layout can help determine the available options.

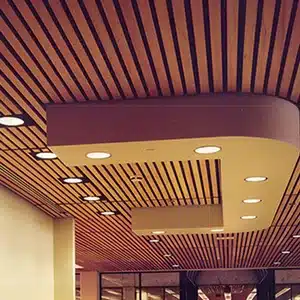

Wooden Slat Ceiling

Decorative timber or wooden slat ceilings can make direct ceiling access more complicated.

The visible slats may conceal another ceiling structure, services or an open void above.

For temporary air conditioning, the installation should therefore be planned around the actual building configuration rather than assuming the visible ceiling can be used as an exhaust route.

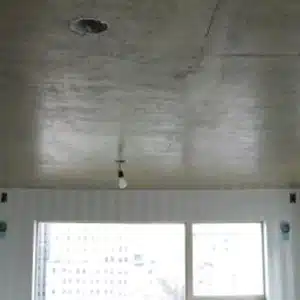

Concrete Ceiling

A concrete ceiling generally provides no simple removable ceiling access.

If hot air cannot be rejected into an appropriate ceiling space, the installation may require another route or a different type of temporary cooling equipment.

For sites where conventional hot-air exhaust is difficult, a water-cooled split system can sometimes provide an alternative. Aircon Rentals has used this type of setup in difficult-access applications where conventional exhaust arrangements were impractical.

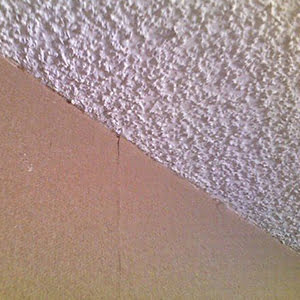

Popcorn Ceiling

A textured or popcorn-style ceiling should not be disturbed simply to install temporary air conditioning.

The installation should instead be assessed for another suitable route for ducting or for equipment that does not rely on conventional hot-air exhaust into the ceiling area.

Send photographs before installation so the available options can be reviewed.

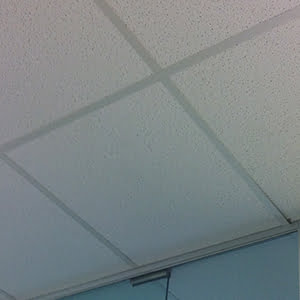

Suspended Ceiling

Suspended ceilings are common in offices and commercial buildings and may provide access to a ceiling void above removable tiles.

Where suitable, this can sometimes provide a route for temporary air-conditioning ducting. However, the ceiling void still needs to be appropriate for the intended heat rejection and installation arrangement.

The Aircon Rentals portable AC guidance notes that air-cooled units can, depending on the site, discharge heat through ducting into a suitable ceiling void.

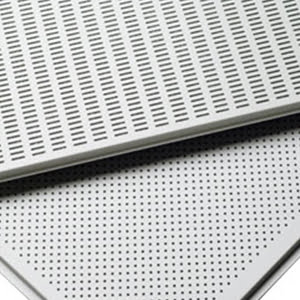

Metal Pan Ceiling

Metal pan ceiling systems can vary in how easily individual sections can be accessed or removed.

Before installation, it is useful to identify whether the panels are accessible and what is located above them.

Photos of the ceiling and surrounding room help determine whether ceiling access is practical or whether another exhaust route should be considered.

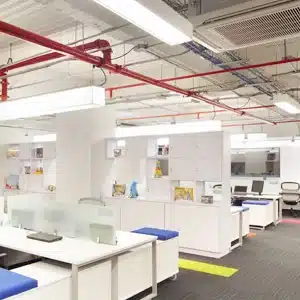

Exposed Services

Some commercial and industrial spaces have no conventional suspended ceiling, leaving ductwork, pipes, electrical services and structural components exposed.

These environments can provide different routing possibilities, but the location of existing services, available clearance and suitable heat-rejection points still need to be assessed before temporary HVAC equipment is installed.

Why does ceiling type matter for portable air conditioner hire?

Portable air conditioners remove heat from the area being cooled, but that heat still needs somewhere to go.

For an air-cooled portable system, hot air is typically discharged through ducting to an appropriate location outside the conditioned area. Depending on the building, that may be:

• through a window
• into a suitable ceiling void
• into a plant room
• directly outdoors
• to another suitable heat-rejection area

Aircon Rentals advises that the correct arrangement depends on ventilation, access and the cooling requirement at the site.

This is why two identical rooms may require different installation approaches simply because the ceiling and available exhaust routes are different.

What if there is nowhere to exhaust the hot air?

A conventional air-cooled portable unit is not always the best option.

Where external exhaust is difficult, a water-cooled split system may provide another solution because the heat-rejection section can be positioned away from the conditioned room.

Aircon Rentals has used this arrangement in a very small service station where there were no easily accessible windows or manholes. The indoor and outdoor sections were connected by hoses routed through the site to the external unit.

Water-cooled split systems have also been used where noise inside an occupied meeting room was important, because the heat-rejection component could be positioned away from the room.

View portable air conditioner hire options

What information should I send before arranging temporary air conditioning?

To help us understand your site, send:

• a clear photo of the ceiling
• a wider photo of the room
• room dimensions
• ceiling height
• photographs of available windows
• nearby doors or external walls
• any accessible ceiling tiles
• the location where cooling is required
• available electrical power
• any restrictions on where ducting or hoses can run

For more guidance on selecting cooling capacity, see our portable air conditioner sizing guide.

Frequently Asked Questions

Can a portable air conditioner exhaust hot air into the ceiling?

It can in some installations, but only where there is a suitable ceiling void and appropriate heat-rejection arrangement.

Air-cooled portable air conditioners need to discharge the heat removed from the room somewhere outside the conditioned space. Depending on the site, Aircon Rentals may route ducting into a suitable ceiling void, through a window, into a plant area or outdoors.

The ceiling and space above it should be assessed before installation.

Do I need a suspended ceiling to hire a portable air conditioner?

No.

A suspended ceiling is only one possible installation configuration.

Depending on the site, hot-air ducting may be routed through a window or to another appropriate heat-rejection location. Where conventional exhaust is difficult, another type of temporary air-conditioning system may be recommended.

Can portable air conditioning be installed with a concrete ceiling?

Yes.

A concrete ceiling does not prevent temporary air conditioning from being used, but it may remove one potential route for hot-air ducting.

The installation may instead use a window, external opening or another cooling system that better suits the room.

What if my office has no windows and no accessible ceiling void?

Tell Aircon Rentals before the equipment is selected.

A conventional air-cooled portable unit may not be the most suitable option if there is nowhere to reject hot air.

A water-cooled split system can be useful in enclosed rooms or difficult-access locations because the heat-rejection section can be positioned separately from the indoor unit. Aircon Rentals has used this type of arrangement where windows and conventional exhaust routes were unavailable.

Do you need to remove ceiling tiles to install a portable air conditioner?

Not always.

Ceiling access is only required where the selected installation uses the ceiling space for duct routing or heat rejection.

Other installations may use windows, external areas or alternative equipment. The correct setup depends on the room and building configuration.

What photos should I send for a temporary air conditioning quote?

Send a clear photograph of:

• the ceiling
• the whole room
• windows
• doors
• nearby external walls
• available ceiling access
• the proposed location of the portable unit

Also provide the room dimensions and ceiling height.

These details help determine both the required cooling capacity and how the temporary system can be installed.

Not Sure What Type of Ceiling You Have?

You do not need to identify the ceiling perfectly before contacting us.

Send Aircon Rentals a few photographs of the ceiling and room along with the approximate room dimensions, required temperature and a description of the cooling problem.

Our team can assess the available access, heat-rejection options and temporary cooling equipment required for the site.
