Technical Info
Cooling Capacity: 1,254 kW
Total Unit Power (without pump): 434.3 kW
Efficiency (without pump): 2.887 kW
For Commercial & Industrial Hire

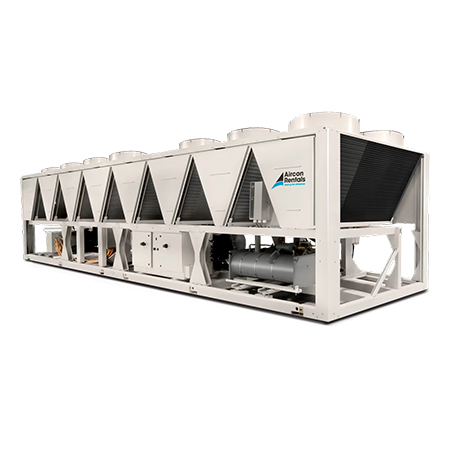

1300kW Air Cooled Chiller
Our 1300kW Air Cooled Chillers are the economic solution for commercial and industrial applications where high reliability and economic operation in all climate conditions are key customer requirements. Designed to meet current and future regulations for energy efficiency and operating sound levels.
Power Requirements
Unit Voltage: 400-3-50 V-Ph-Hz
Standby Power: 0.6000 kW
Minimum Voltage: 360 Volts
Maximum Voltage: 440 Volts
Physical Info
Shipping Weight: 10029 kg
Operating Weight: 10215 kg
Unit Length: 10768 mm
Unit Width: 2253 mm
Unit Height: 2297 mm
Features
- Very economical operation: Exceptionally high full load and part load energy efficiency.
- Low operating sound levels
- Easy to install
- Environmental responsibility: Range designed for use with R-134a refrigerant with the possibility to upgrade to ultra-low global warming potential R-1234ze refrigerant on site in the future.
- Exceptional reliability
Accessories
- Chilled & Condenser Water Pump
- Power Cables
- Camlock Flexible Hoses
- Remote Monitoring
- Housing (20Ft ISO Shipping Container)
