Technical Info
Air Flow (l/s): 2000

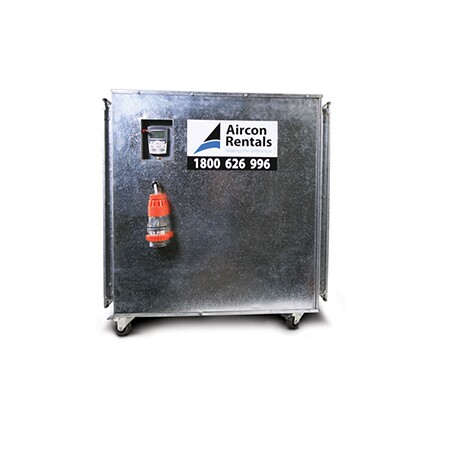

The 3 Phase 2000 In-Line Booster Fan is a high-capacity, variable-speed ventilation unit designed to maintain strong airflow over long duct runs, making it ideal for demanding industrial and construction environments. Compact for its performance, measuring 700 × 700 × 700 mm and weighing approximately 150kg, it delivers an impressive 2000 L/s (about 7,200 m³/h) of airflow. Powered by a standard single-phase 15 A outlet, it offers plug-and-play convenience without the need for specialised electrical infrastructure. The variable-speed control allows airflow to be precisely adjusted for different applications, including construction site pressurisation, tank ventilation, and welding fume extraction. This combination of portability, adaptability, and power makes it a versatile solution for effective air movement in challenging worksite conditions.
Air Flow (l/s): 2000
Power Requirements: 1 Phase 15 amps
Outlet: Separate circuits
Required Circuit breaker (amps): 15
Height (mm): 700
Width (mm): 700
Length (mm): 700
Weight (kg): 150
