50mm–200mm Electromagnetic Flow Meter Hire

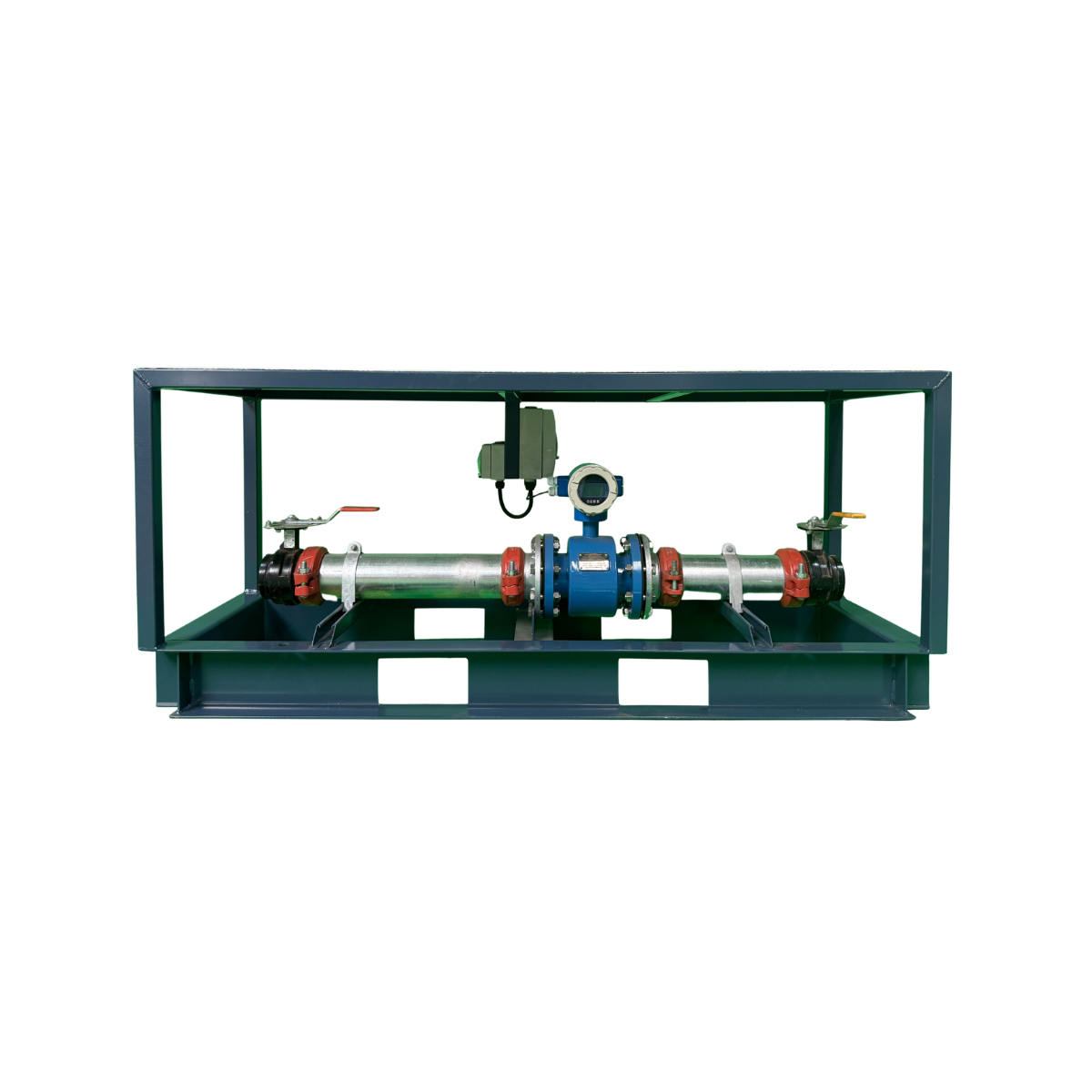

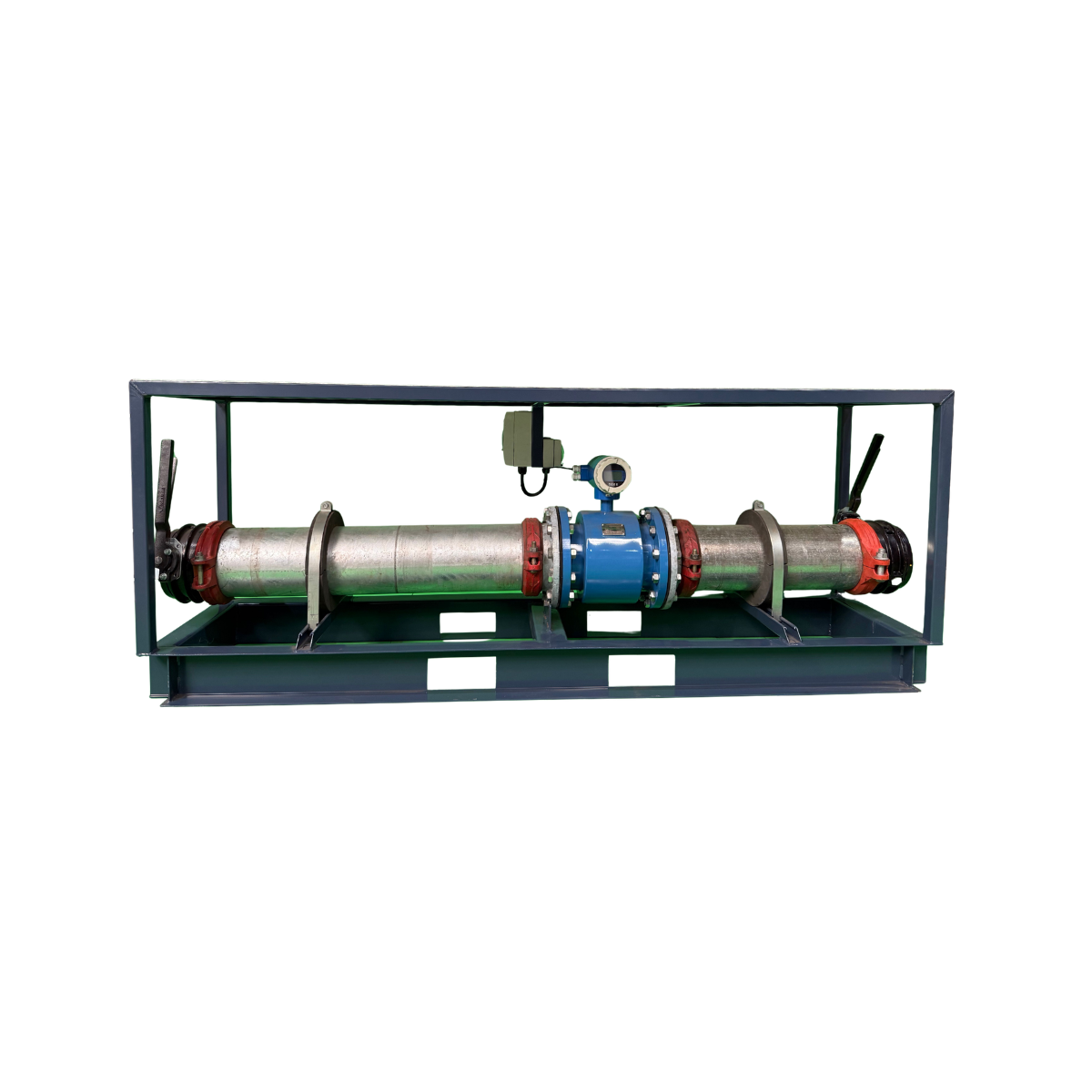

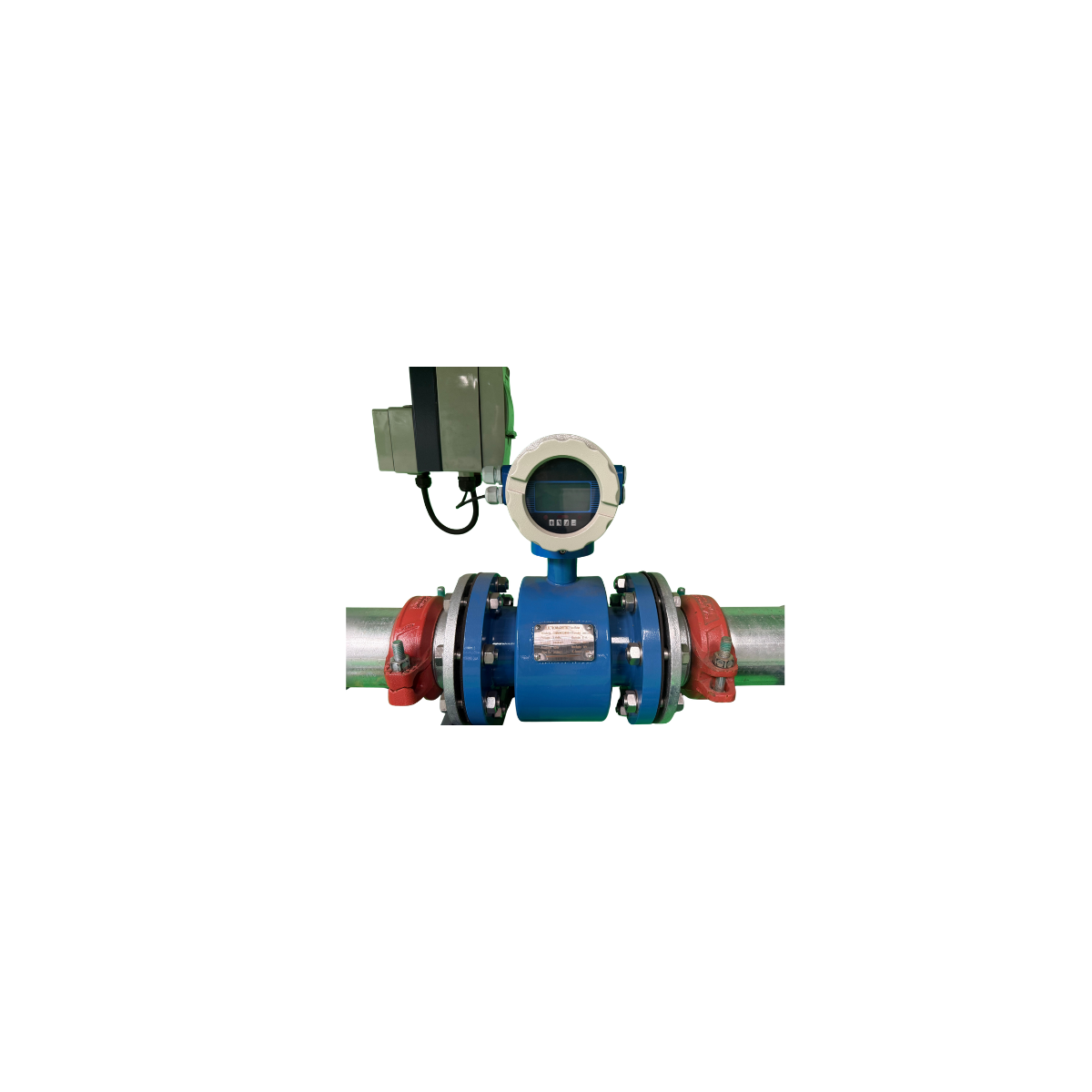

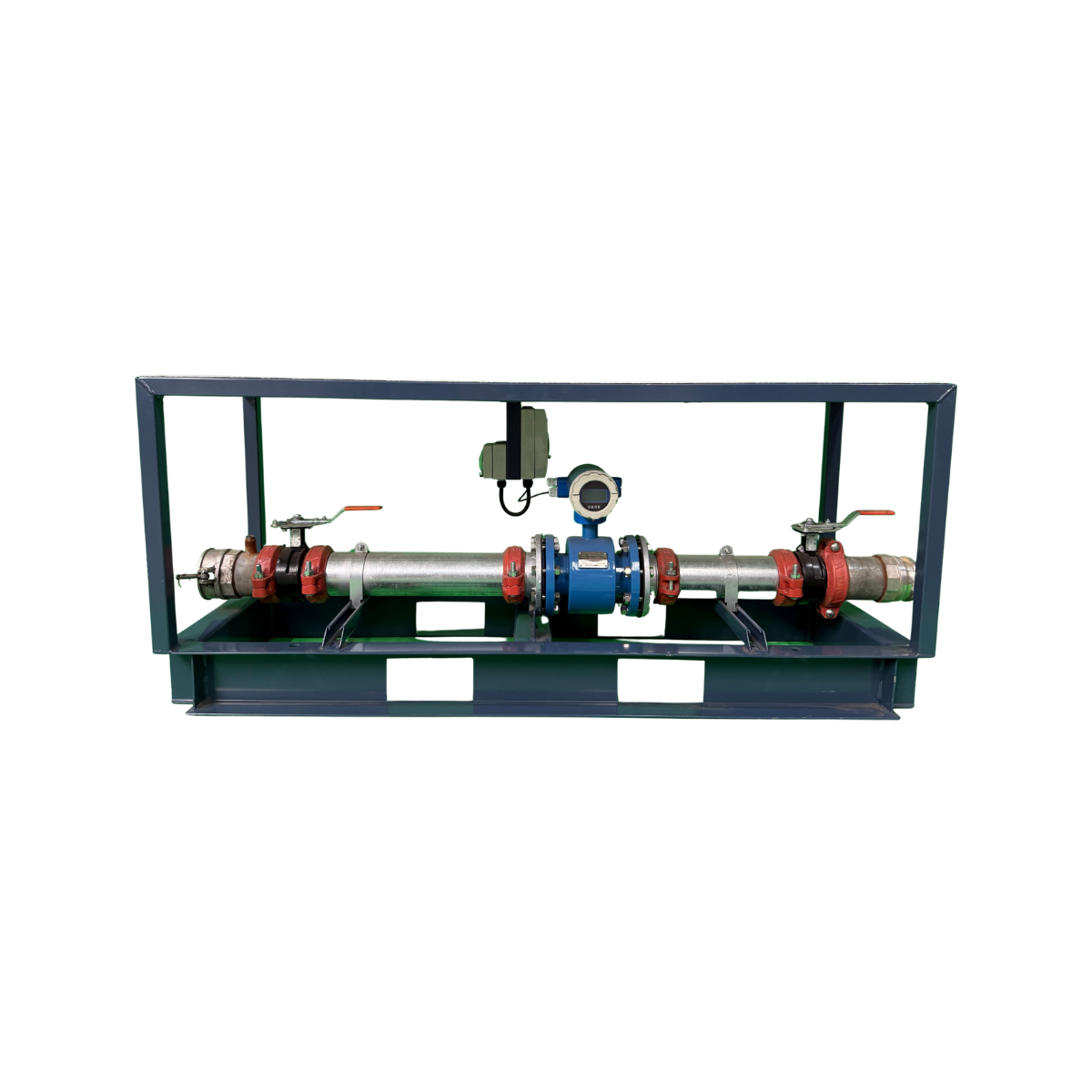

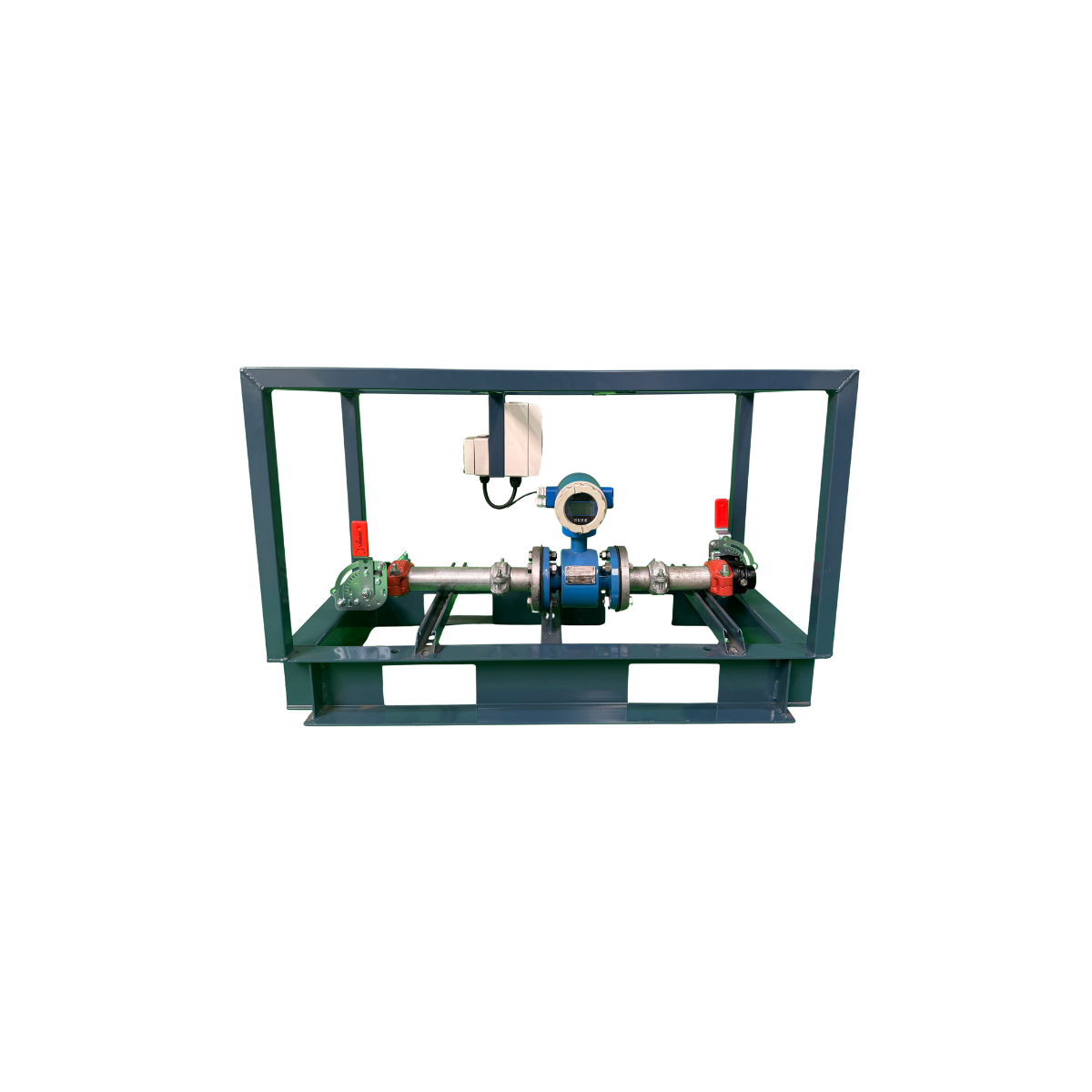

Need to measure how much liquid is flowing through your system? Our flow meter hire provides accurate, real-time flow measurement for water and glycol applications. Suitable for pipe sizes from 50mm to 200mm, these electromagnetic flow meters integrate easily into temporary HVAC and chiller systems.

Measuring the flow of liquids through your system is a breeze with our flow meter rental service. These electromagnetic flow meters provide accurate, real-time data on water and glycol flow, perfect for HVAC and chiller systems with pipe sizes ranging from 50mm to 200mm. Integrating seamlessly into temporary setups, these flow meters give you the critical information you need to ensure your equipment is running at peak performance.

Whether you’re commissioning a new system, troubleshooting issues, or monitoring ongoing operations, flow measurement is essential. It allows you to validate flow rates, optimise efficiency, and keep chillers, pumps, and air handlers functioning as they should. Beyond HVAC, these flow meters are widely used in industrial settings like manufacturing, process cooling, and water management, helping to reduce waste, maintain stability, and make informed decisions.

For temporary installations, such as emergency repairs or planned shutdowns, our reliable flow meters offer fast deployment and immediate insight into system performance, keeping your operations running smoothly. Trust our expertise to provide the flow data you need, when you need it.

👉 Need help selecting the right flow meter size? Contact our team for sizing support.

SKU: 1CBF-0050/1000 Category: Tags: , ,

Applications

  • Temporary chiller hire – Monitor water flow to and from the chiller
  • HVAC system pre-commissioning – Verify water flow rates
  • Pump control & optimisation – Access real-time water flow data
  • Hydronic system balancing – Confirm design water flow rates
  • Diagnostics – During initial setup or system upgrades, confirm actual water flow matches design specifications
  • Industrial processes – Control and verify water flow through heat exchangers or coils
  • Cooling tower performance – Control and verify water flow rates

Features & Benefits

  • High-accuracy electromagnetic flow measurement
  • Suitable for water and glycol systems
  • Multiple sizes available: 50mm, 100mm, 200mm
  • Modbus communication for system integration
  • 4–20mA output signal for BMS connection
  • IP67 rated for industrial environments
  • Ideal for temporary HVAC and chiller systems
  • Fast deployment for emergency and planned works

Technical Info

Specification Details
Flow Meter Type Electromagnetic
Measurement Range Refer to flow capacity table
Fluid Compatibility Water / Glycol
Accuracy ±0.5% (typical for electromagnetic meters)
Output Signal 4–20mA
Communication Protocol Modbus
Protection Rating IP67
Operating Temperature -20°C to 150°C
Installation Type Inline skid-mounted
Connection Type Victaulic / Flanged (depending on configuration)

Performance (Flow Range)

Model Connection Minimum Flow Maximum Flow
EFM-50-M 50mm 0.59 l/s (14.8 kW) 19.63 l/s (493 kW)
EFM-100-M 100mm 2.36 l/s (59.2 kW) 78.33 l/s (1968 kW)
Magflo-100 100mm 2.36 l/s (59.2 kW) 78.33 l/s (1968 kW)
EFM-200-M 200mm 16.7 l/s (419 kW) 277.8 l/s (6978 kW)

Physical Info

Model Connection Frame Size (mm) Weight (kg)
EFM-50-M 50mm 580 × 1160 × 730 91 kg
EFM-100-M 100mm 580 × 1740 × 780 134 kg
Magflo-100 100mm 680 × 1730 × 725 118 kg
EFM-200-M 200mm 580 × 2320 × 910 252 kg

Power Requirements

Specification Details
Power Supply 240V AC
Phase Single Phase
Frequency 50 Hz
Connection Type Standard Appliance Inlet
Power Consumption Low (instrumentation only)
Protection Rating IP67

Accessories

  • Camlock or Victaulic flexible hoses
  • Bag filter housings & filters
  • Water circulation pumps
  • Data logging systems
  • Control panels
  • Generator hire (for off-grid operation)
