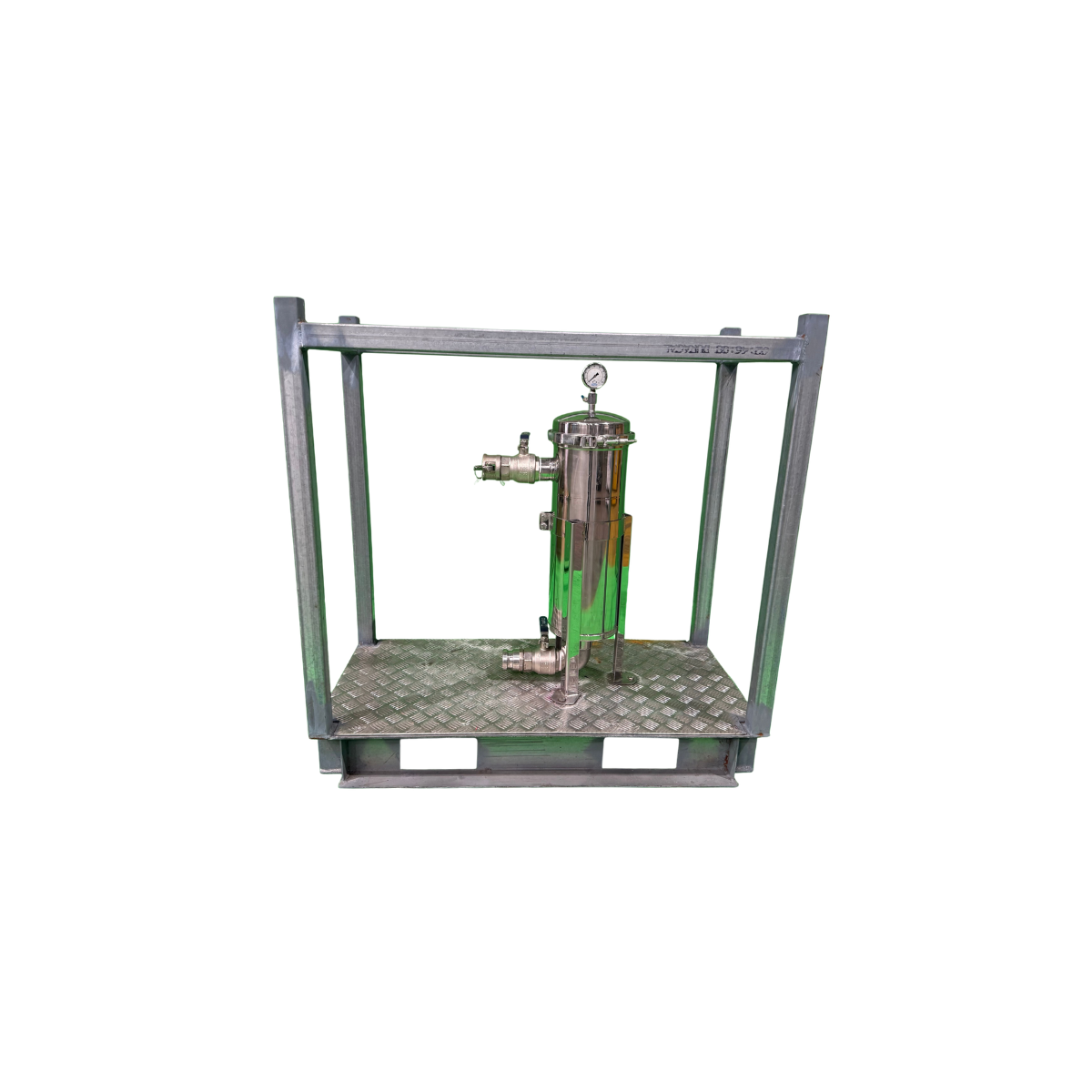

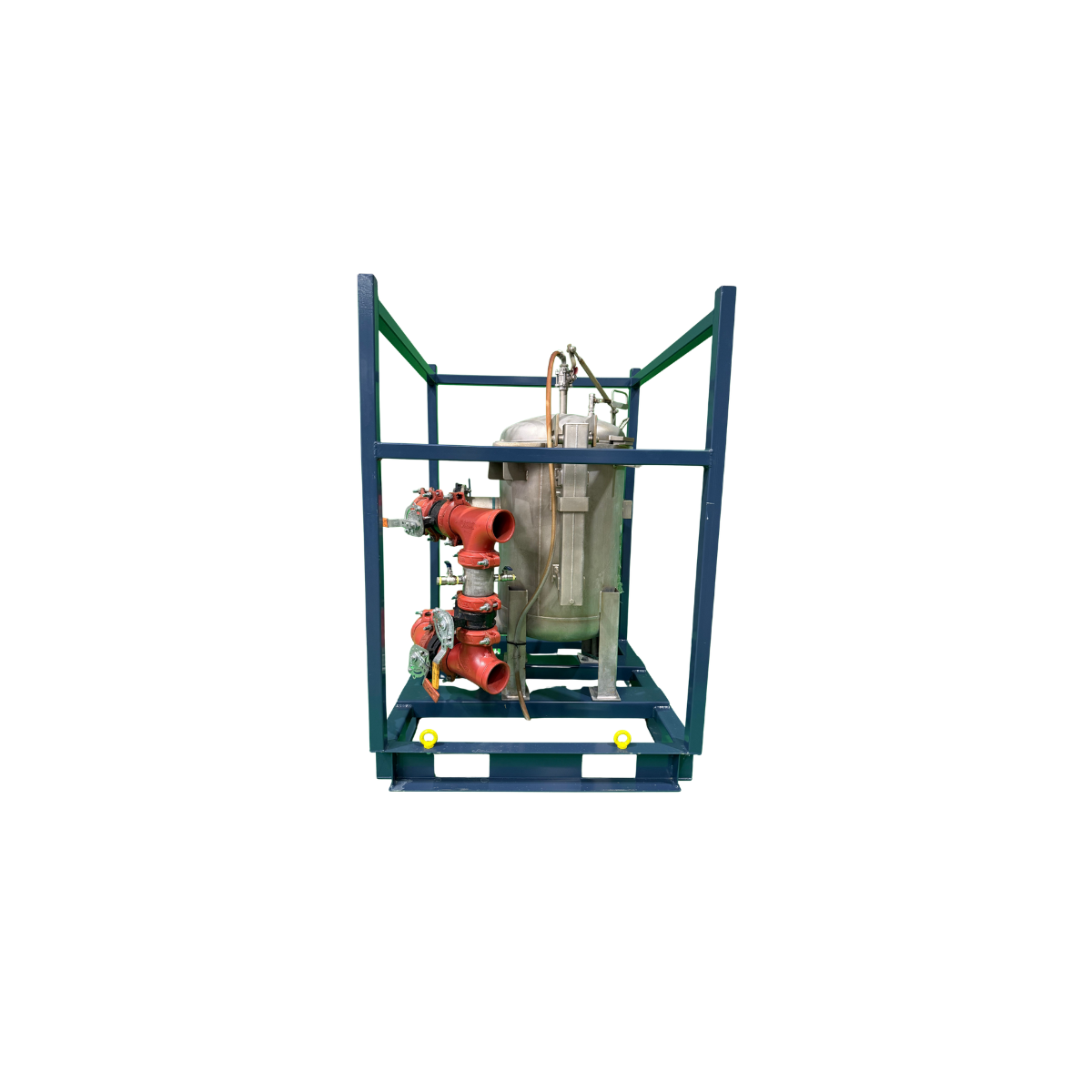

50mm–100mm Stainless Steel Bag Filter Housing Hire

Need to remove contaminants from your system? Our bag filter housing hire provides effective, temporary filtration for water and glycol systems. Designed for quick deployment, these stainless steel filter housings help protect equipment, maintain system performance, and improve water quality across HVAC and industrial applications.

Bag filter housings are used to capture particles and debris within fluid systems, helping prevent blockages, reduce wear on equipment, and maintain efficient operation. This is especially important during commissioning, maintenance, and temporary installations where water quality may be compromised.

In HVAC and chiller systems, filtration plays a critical role in protecting pumps, heat exchangers, and coils from fouling and damage. By removing suspended solids, bag filter housings help maintain consistent flow rates and improve overall system reliability.

👉 Need help selecting the right flow meter size? Contact our team for sizing support.

Applications

  • Temporary chiller and HVAC systems
  • System commissioning and flushing
  • Removal of debris and contaminants
  • Cooling tower water filtration
  • Industrial process water filtration
  • Maintenance and shutdown works

Features & Benefits

  • High-efficiency bag filtration (1–500 micron)
  • Suitable for water and glycol systems
  • Durable stainless steel housing construction

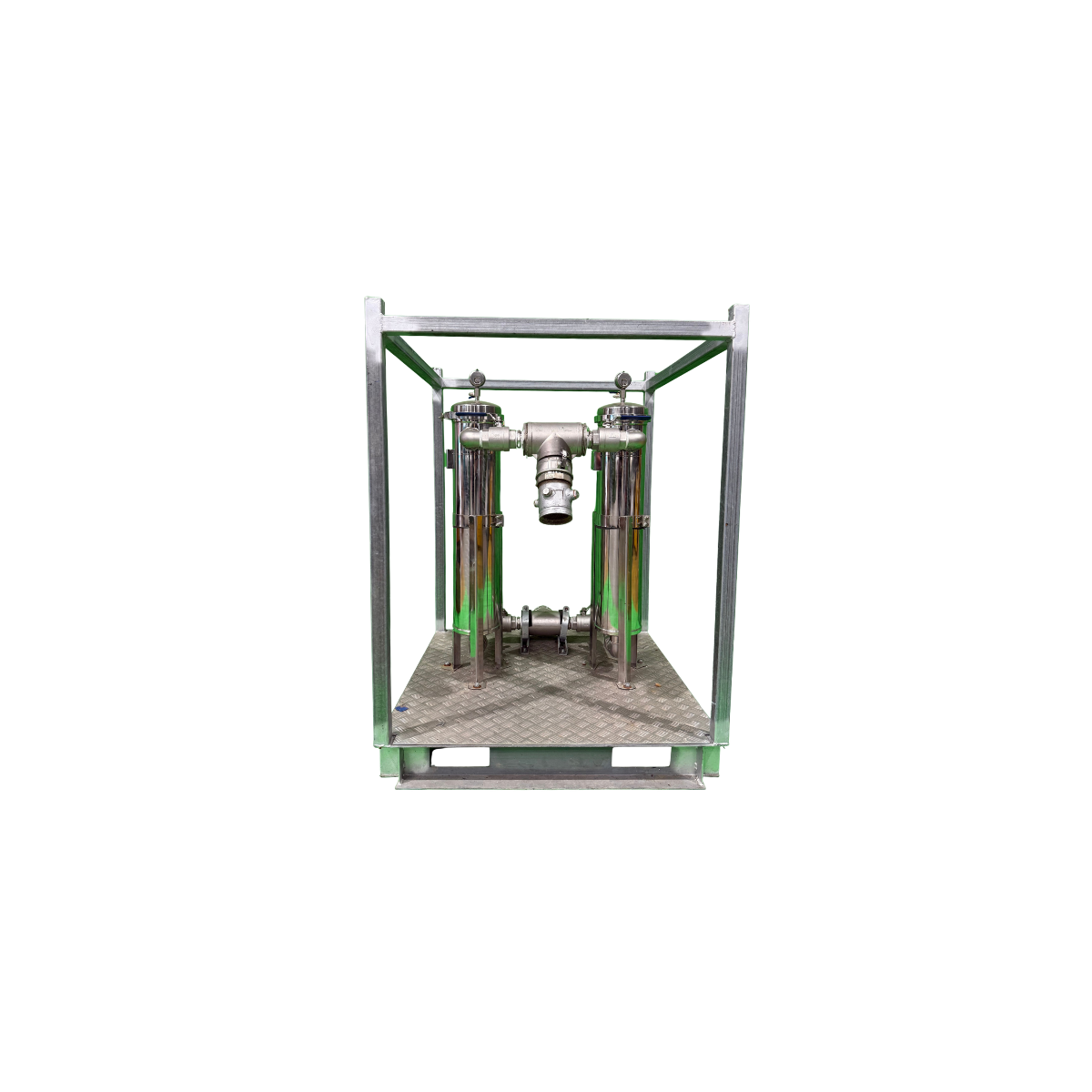

  • Multiple configurations (single, double, multi-bag)
  • Quick connection via Camlock or Rolled Groove fittings
  • Protects pumps, heat exchangers, and critical equipment
  • Ideal for temporary and emergency installations

Technical Info

Specification Details
Filtration Type Bag Filter Housing
Bag Sizes P1 / P2
Micron Rating 1 – 500 micron
Housing Material Stainless Steel
Max Pressure Up to 10 Bar
Fluid Compatibility Water / Glycol
Connection Type Camlock / Rolled Groove
Installation Type Skid-mounted

Performance (Flow Capacity)

Model Flow Rate Connection Max Pressure
BF-50 5.5 l/s 50mm 6.89 Bar
BF-100 11–22 l/s 100mm 6.89 Bar
BF-4-44 44 l/s 100mm 10 Bar

Physical Info

Model Bag Size No. of Bags Frame Size (mm) Weight
BF-50 P1 1 580 x 1165 x 1170 92 kg
BF-100 P2 2 1165 x 1165 x 1560 134 kg
BF-4-44 P2 4 1165 x 1165 x 1705 360 kg

Power Requirements

Specification Details
Power Supply Not Required
Operation Passive Filtration System

Accessories

  • Replacement filter bags (1–500 micron)
  • Flexible hoses and pipe connections
  • Pumps for circulation
  • Flow meters for system monitoring
  • Temporary chiller and HVAC equipment
