Medical Air System Hire 1200 L/min

Medical Air System hire solution is essential when healthcare facilities need a dependable, medical-grade air supply during maintenance, system failures, or facility upgrades. Our Medical Air System 1200 L/min capacity rental service offers a fully integrated, temporary solution that delivers clean, compliant compressed air tailored for healthcare environments.

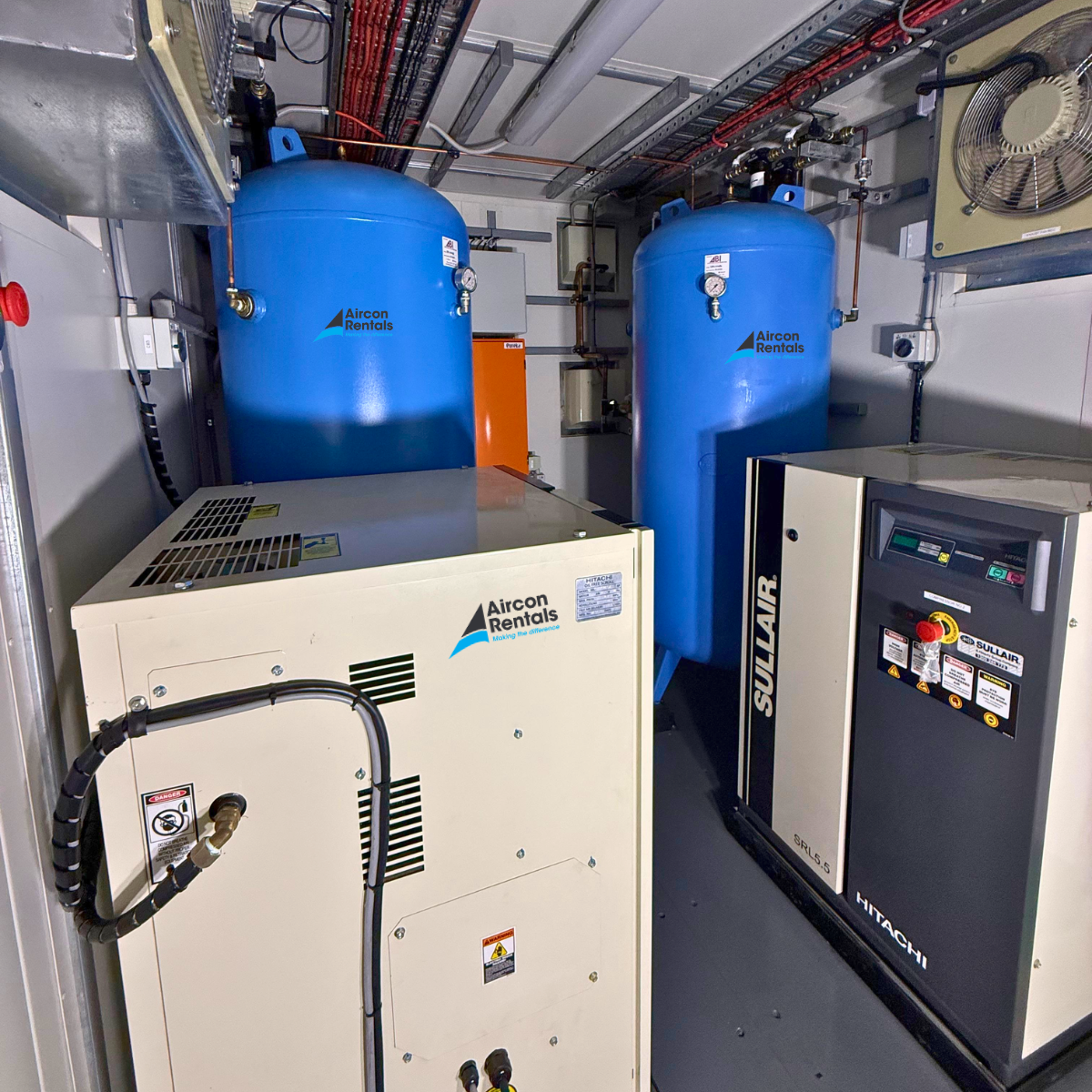

Housed in a compact container, this system features oil-free compressors, air receivers, refrigerated dryers, and multi-stage filtration to ensure consistent air quality and pressure. It is ideal for hospitals, medical facilities, and critical environments where a reliable medical air supply is crucial.

Medical Air Systems play a vital role in patient care, supporting respiratory equipment and clinical operations. Any disruption can compromise safety and compliance. This temporary solution allows facilities to remain fully operational during shutdowns, upgrades, or unexpected failures—without disrupting patient care.

The Medical Air System 1200 L/min is designed for rapid deployment and seamless integration, delivering consistent airflow, precise pressure control, and high-performance filtration. With built-in redundancy (N+1 configuration) and real-time monitoring capabilities, it ensures reliability in critical healthcare environments.

👉 Need help selecting the right system? Contact our team for expert sizing and deployment support.

Applications

  • Temporary Medical Air System hire for hospitals and healthcare facilities
  • Backup air supply during system failure or maintenance
  • Support for operating theatres, ICUs, and critical care environments
  • Maintaining continuous air supply during commissioning and validation
  • Facility upgrades and plant replacement
  • Emergency response and capacity support

Features & Benefits

  • Supports compliant medical air supply for healthcare environments
  • Oil-free compressed air for safe and clean operation
  • N+1 (duty/standby) configuration with automatic backup
  • Multi-stage filtration delivering clean, dry air
  • Containerised, fully integrated system for rapid deployment
  • Compact footprint for restricted or sensitive sites

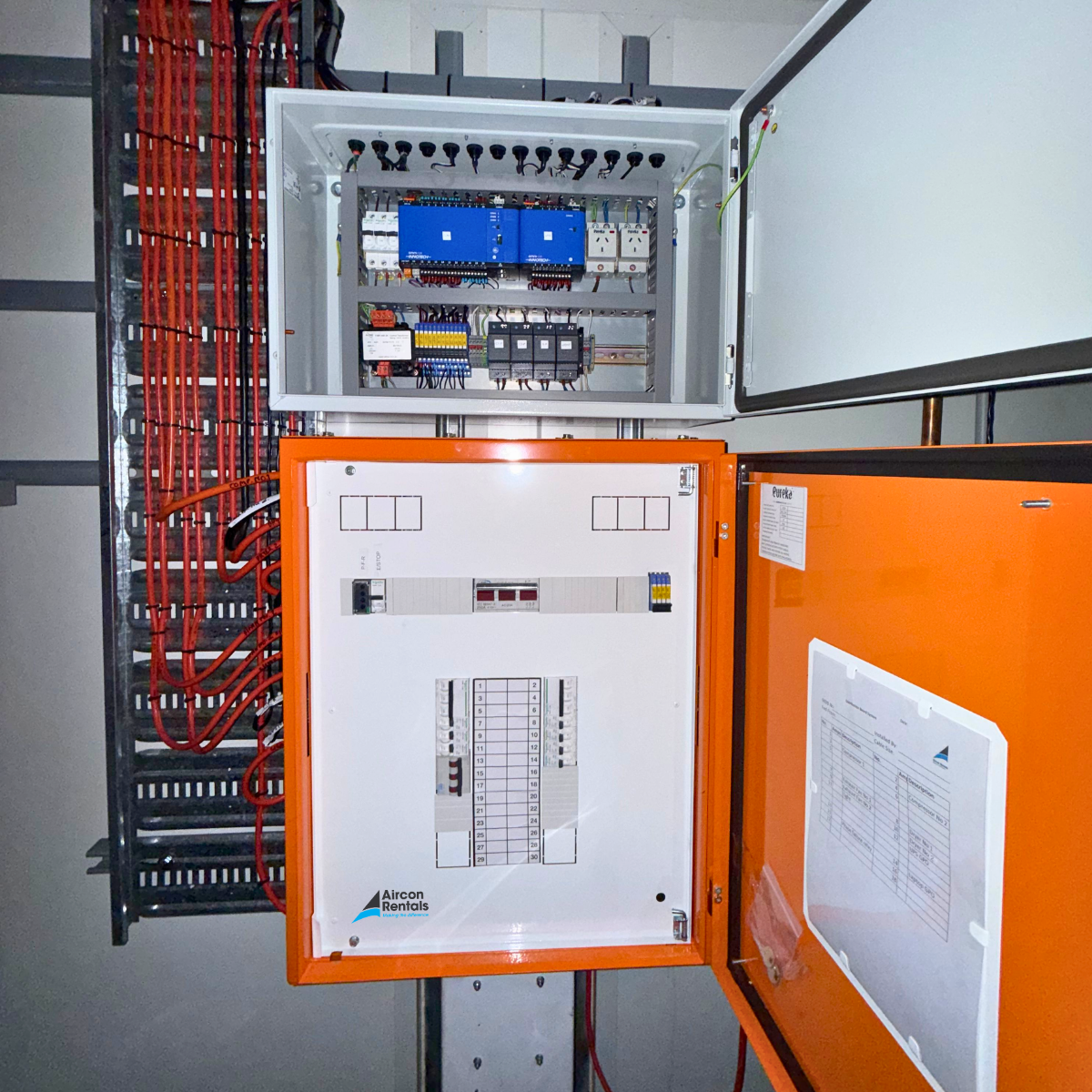

  • BACnet integration with real-time monitoring
  • SMS/email, visual, and audible alarm system
  • Plug-and-play installation with minimal disruption
  • Suitable for emergency, shutdown, and planned works

Technical Info

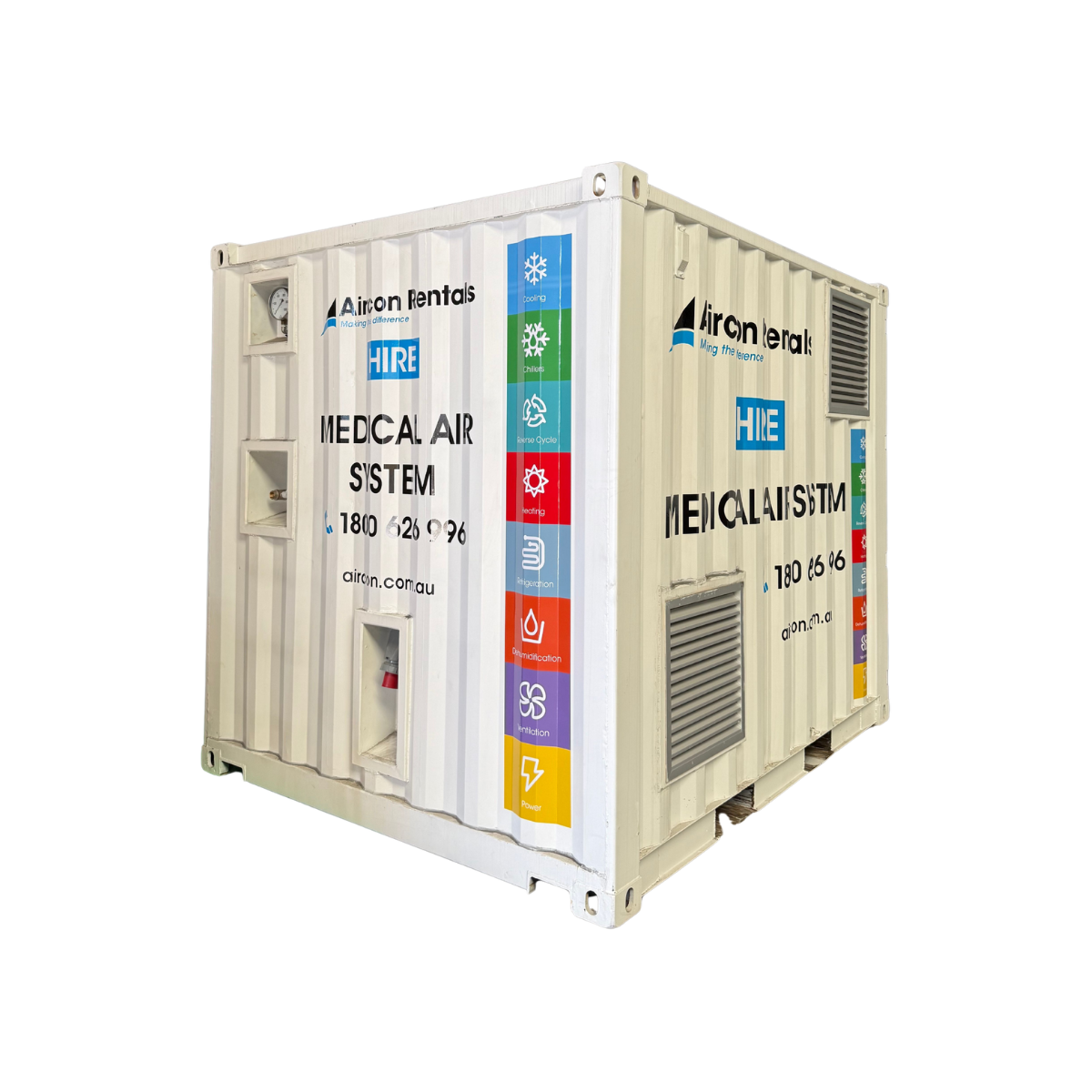

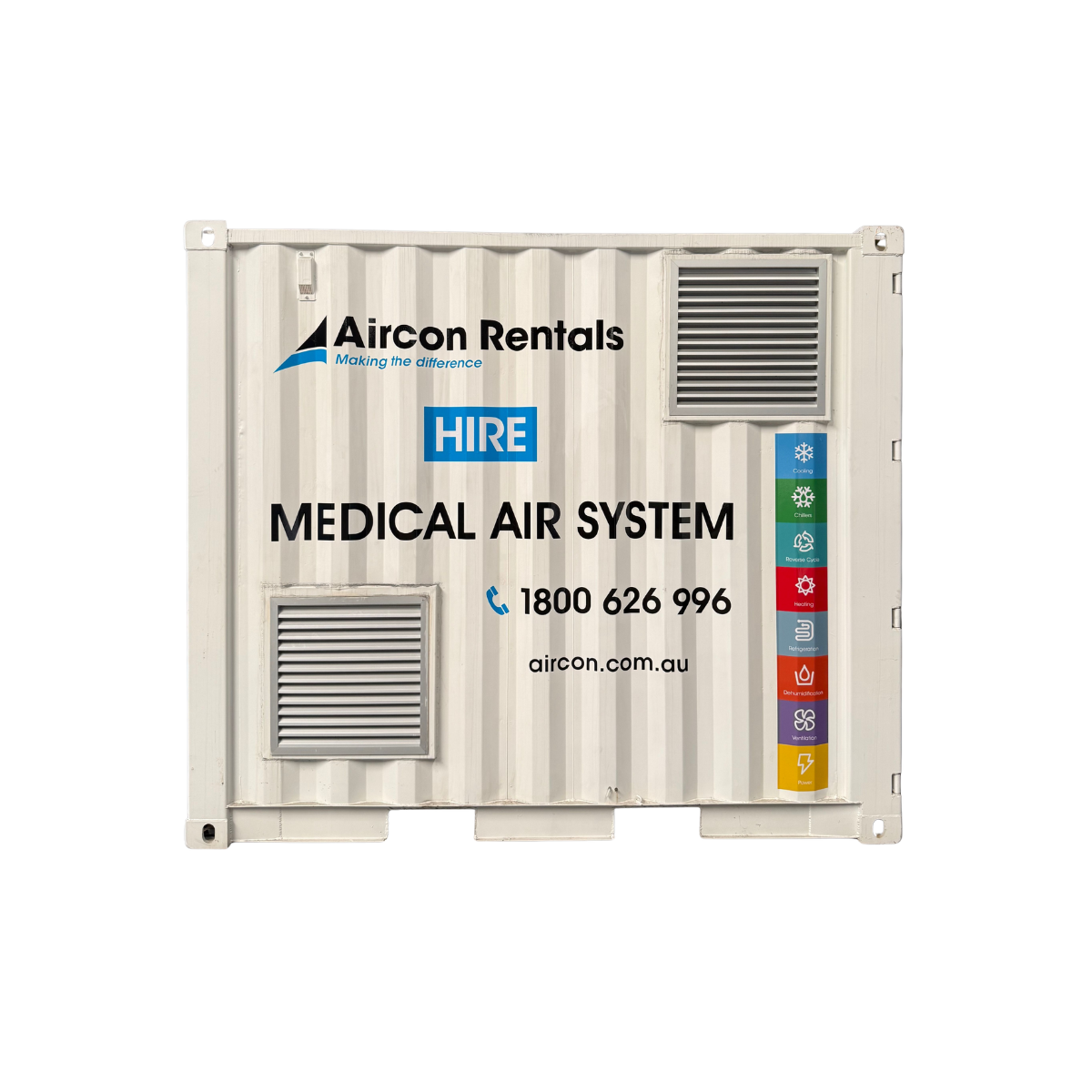

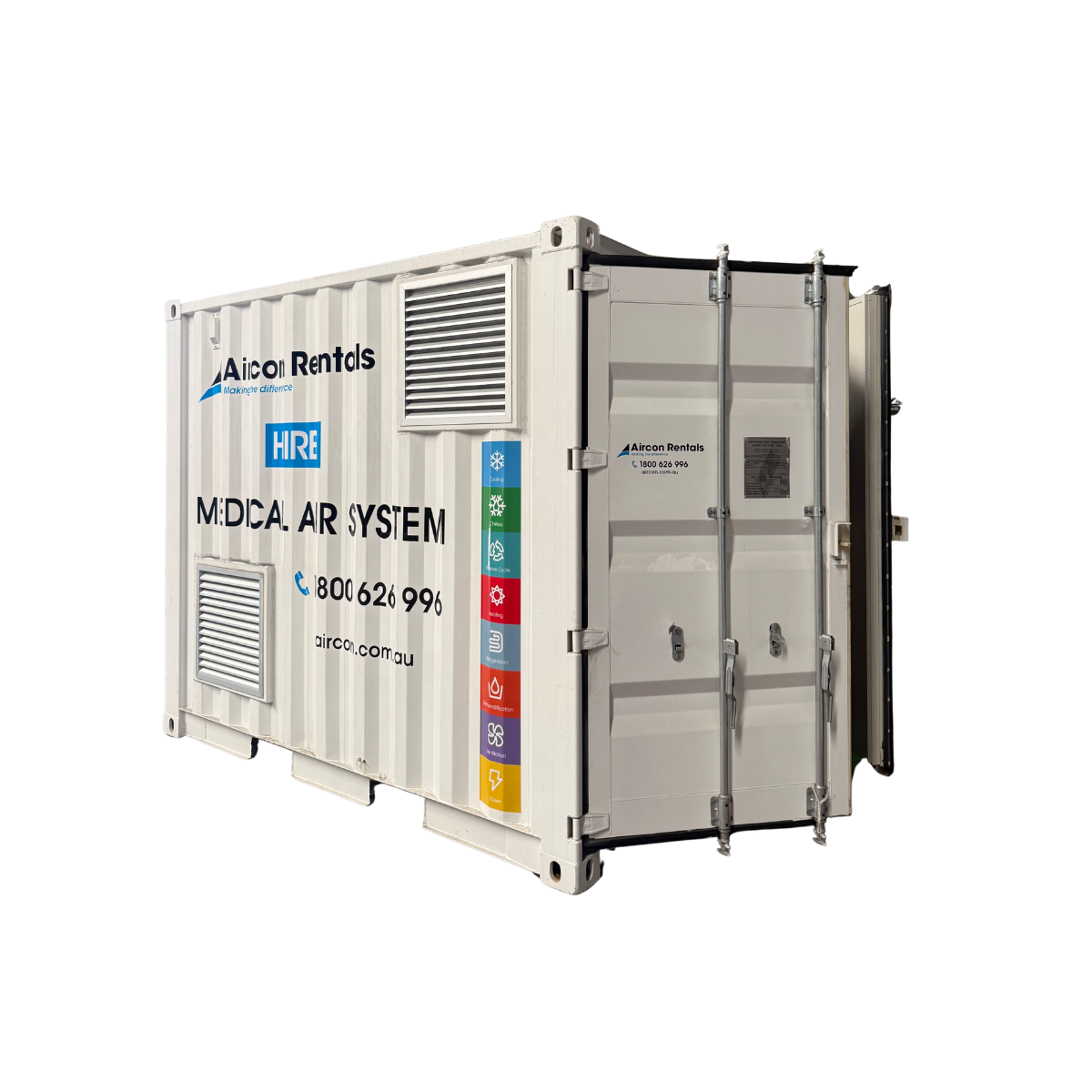

  • 1200 L/min capacity, containerised in a 10ft ISO unit (3000 × 2400 × 2580 mm) with 50mm PIR insulation
  • 63A Euro plug power connection and 25mm BSP female air connection
  • 2 × Hitachi SRL-5.5ME5A oil-free scroll compressors delivering 600 L/min each (10 L/s), operating at 8 bar (max 8.5 bar), 50 dBA noise level, 750 × 715 × 1070 mm, 184 kg
  • 2 × Pilot 3100600 air receivers, rated to 11 bar with 600L capacity each and 2000 mm height
  • 2 × Champion CRDi018 refrigerated air dryers rated at 1200 L/min @ 40°C / 7°C, operating at 7 bar (max 16 bar), 520 × 225 × 560 mm, 27 kg

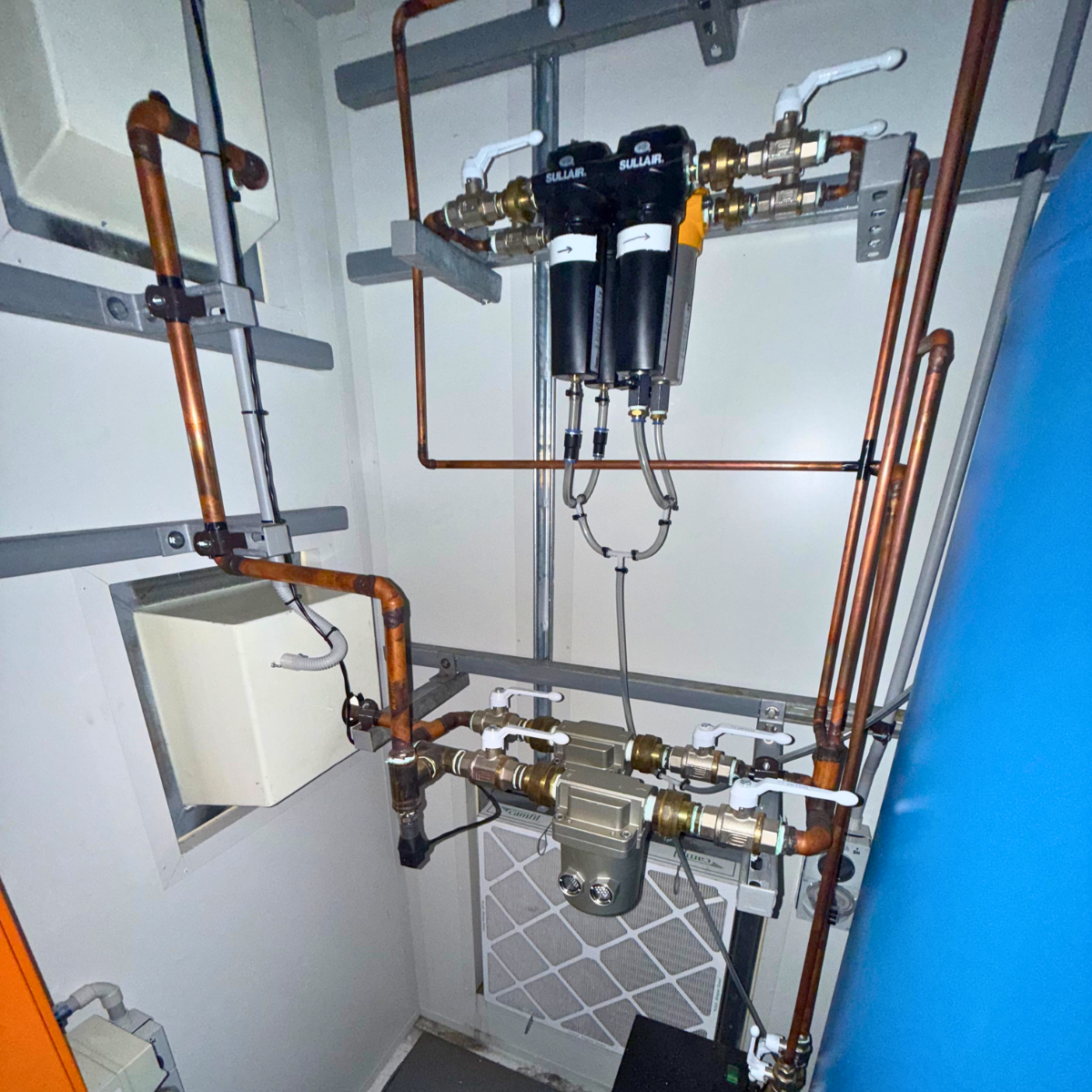

  • 4 × Sullair / SMC airline filters with multi-stage filtration: 1.0 micron pre & post coalescing and 0.01 micron activated carbon

Performance

  • Total Capacity: 1200 L/min
  • Operating Pressure: 8 bar
  • Maximum Pressure: 8.5 bar

Suitable for supporting critical zones or small-to-medium healthcare applications requiring consistent medical air supply.

Physical Info

  • 10ft ISO containerised unit
  • Weather-protected enclosure
  • Service access doors
  • Compact footprint for transport and installation

Power Requirements

  • Compressors: 415V / 3 Phase / 50Hz, 5.5 kW each
  • Refrigerated dryers: 240V / 1 Phase / 50Hz, 0.49 kW
  • Power connection: 63A Euro plug

Accessories

  • Flexible air hoses
  • Air distribution manifolds
  • Backup generators
  • Monitoring and control systems
  • Additional filtration (if required)
