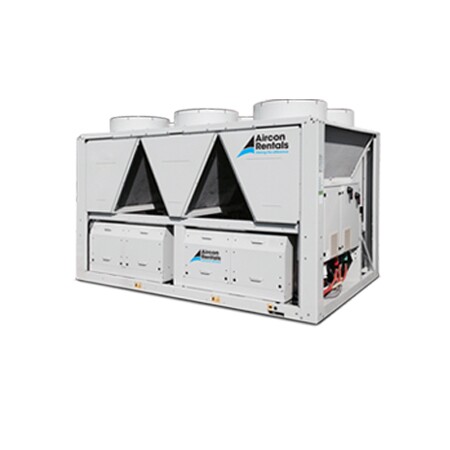

350kW Air Cooled Chiller


Designed to meet all requirements, this unit uses the best technologies available: twin-rotor screw compressors with a variable capacity valve, low-noise generation IV Flying Bird fans made of composite material, aluminium micro-channel heat exchangers (MCHX) and touch-screen control systems.

Additional Benefits

  •  Easy & Fast to Install
  •  Economical operation
  • Environmental care
  •  Low operating sound levels
Download Spec Sheet



SKU: 1CHL-0350 Category:

Technical Info

Performance Information
Cooling Capacity: 305.2 kW
Total Compressor Power: 99.0 kW
Total Fan Motor Power: 4.06 kW
Total Unit Power: 103.4 kW
Efficiency: 2.95 kW/kW
A-Weighted Sound Power Level: 89 dbA

Evaporator Information
Fluid Type: Fresh Water
Fouling Factor: 0.0180 (sqm-K)/kW
Number of Passes: 2
Leaving Temperature: 6.0 °C
Entering Temperature: 12.0 °C
Fluid Flow: 12.14 L/s
Total Pressure Drop: 12.0 kPa
Refrigerant: R134A

Power Requirements

Electrical Inforamtion
Unit Voltage: 400-3-50 V-Ph-Hz
Standby Power: 0.20 kW
Minimum Voltage: 360 Volts
Maximum Voltage: 440 Volts
Power Factor: 0.84

Physical Info

Height (mm): 2297
Width (mm): 2253
Length (mm): 3604
Weight (kg): 3820

Accessories

  • Chiller water pumps
  •  Chilled water pipe work
  •  1400 Amp switch boards
  •  5 Lane crossover
  •  3 Phase cables

Features

  •  Easy and fast installation
  •  Very economical operation
  •  Environmental Care
  •  Low Operating sound levels
