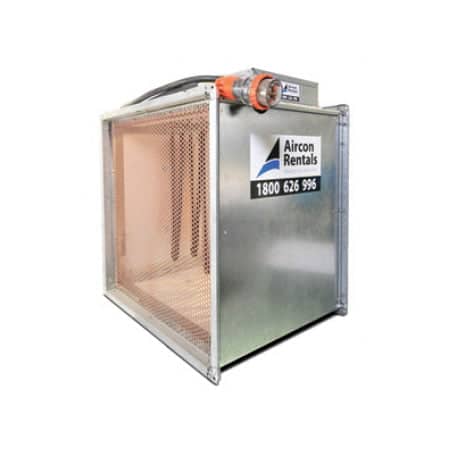

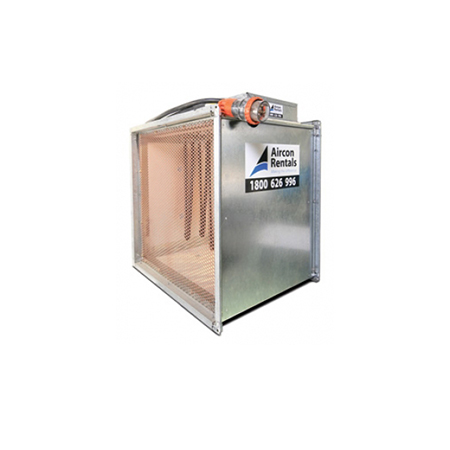

20kW Industrial Fan Forced Heater

This is an industrial fan force heater. It is modular in design. Allowing for increase of 20kW per module. Starting at 20kW and expanding through to 60kW. This unit is controlled by DDC. The fan motor can be mounted internally or externally. Ideal to heat large spaces or production lines. Call Aircon Rentals for your ideal heating rental solution on 1800 626 996.

SKU: HEI-20 Categories: ,

Technical Info

Heating Capacity (kW): 20
Stages: 2
Air Flow (l/s): 750

Power Requirements

Power Requirements: 3 Phase 1 x 32amp
Comes with a 32amp 5pin plug
Required Circuit Breaker (amps): 32

Physical Info

Height (mm): 700
Width (mm): 700
Length (mm): 1000
Weight (kg): 80


  •  3 Phase Extension Leads
  • Cable Cross Over – Lane
  •  32amp Distribution Board


  •  Variable Speed Drive Control allows for the fans speed to be controlled
  •  Remote Temperature Sensor
  •  Programmable Direct Digital Control system
  •  Time Clock
  •  Three Phase Power Required
  •  Device(s) has been design to run from standard 32 Amp 5pin plug(s).
  •  Over Temperature cutout
