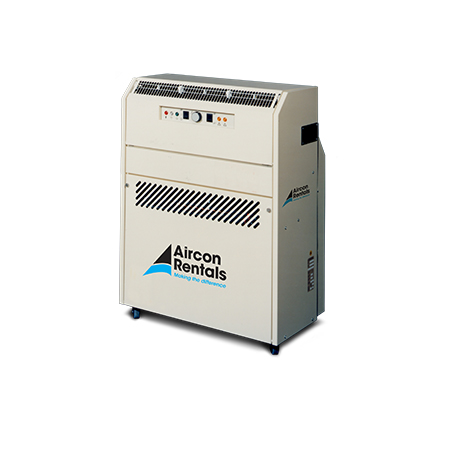

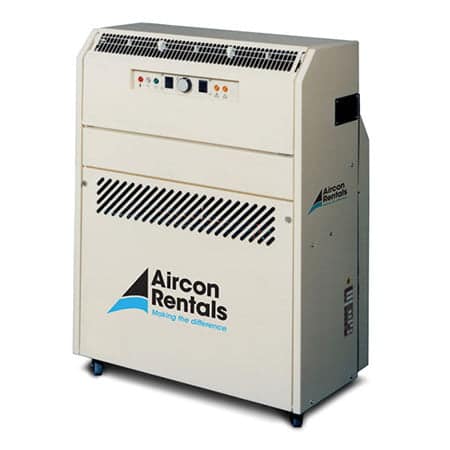

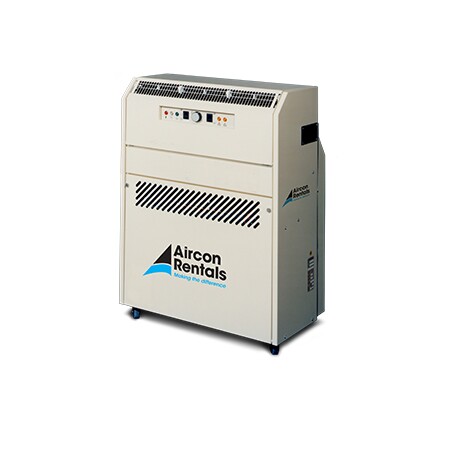

4.5kW Water Cooled Split System


This water cooled air conditioner is designed to withstand the rigours and wear and tear of hire yet aesthetically pleasing and quiet in operation. Offering true air conditioning without the exhaust air gains associated with monoblock units. There’s no need for exhaust ducting to be connected to an outside area – just one water line. Unit sits on non marking castors for ease of mobility and has a two speed fan and adjustable outlet grille.

Download Spec Sheet



SKU: 1POR-2008 Category:

Technical Info

Total Cooling Capacity (kW): 4.5
Power Consumption: 1.8
Airflow – High/Low (l/s): 208 / 105
Refrigerant: R22 or 407C
Noise Level @ 3m (dBA): 54
Defrost: Hol gas bypass
Operating Range (°C): 0-37
Drainage: Fully pumped with 30m head and high level alarm
Will cool estimated 156m³/29m²

Power Requirements

Running Current ^ (Amps): 7.3
Rated Current (Amps): 10
Hertz: 50

^ 25°C / 60%RH

Physical Info

INDOOR UNIT
Height (mm): 945
Width (mm): 695
Length (mm): 330
Weight (kg): 105

OUTDOOR UNIT
Height (mm): 505
Width (mm): 200
Depth (mm): 500
Weight (kg:) 22

Accessories

  •  Distribution Boards
  •  Single Phase Extension Leads
  •  Cable Cross Over – Single Lane

Features

  •  Remote Temperature Sensor
  •  Runs from a Standard Power Point
  •  Plug and Play Device
