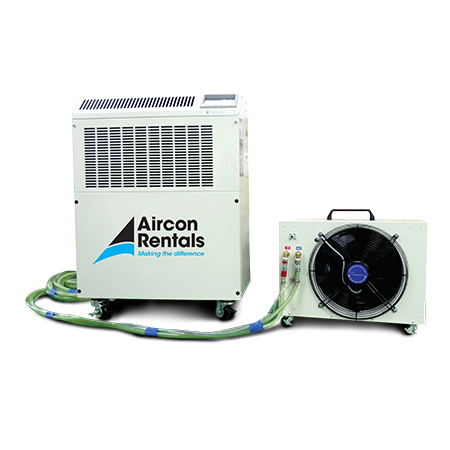

4.8kW Water Cooled Split System

The WCS-4800 is practically designed to be installed where the 4.5kW Spot Coolers hot air duct cannot be exhausted readily. The small heat exchange unit, connected by 2 quick connect glycol hose lines, can be located up to 20m away from the main unit. Of durable metal construction and on 4 heavy duty castors, a self-diagnosing control panel provides ease of operation with continuous or automatic timing functions.

Very suitable for data centres, equipment cooling, server rooms and installations where a split system is the only option.

Downoad Spec Sheet


SKU: 1POR-2006 Category:

Technical Info

Total cooling capacity (kW): 4.8kW
Operating Range (°C): 18 – 45
Noise level (at 3m): 56 / 52
Hose length (standard) (m): 10
Hose length (max.) (m): 30
Refrigerant: R410A

Power Requirements

Power Supply: 50Hz / Single / 220V / 240V
Current consumption (Amps): 10
Power consumption (kW): 2.2

Physical Info

Height (mm): 865
Width (mm): 705
Length (mm): 350
Weight (kg): 91

Height (mm): 505
Width (mm): 200
Depth (mm): 500
Weight (kg:) 22


  •  Distribution Boards
  •  Single Phase Extension Leads
  •  Cable Cross Over – Single Lane


  •  Water-Cooled
  •  Two Speed fan
  •  No need for exhaust duct
  •  Off-timer
  •  Condensate pump included
  •  One touch connector


  •  Compressor time delay
  •  Compressor overload protection
  •  High pressure switch
  •  Thermostat
  •  Self-diagnostic functions
