For Commercial & Industrial Hire

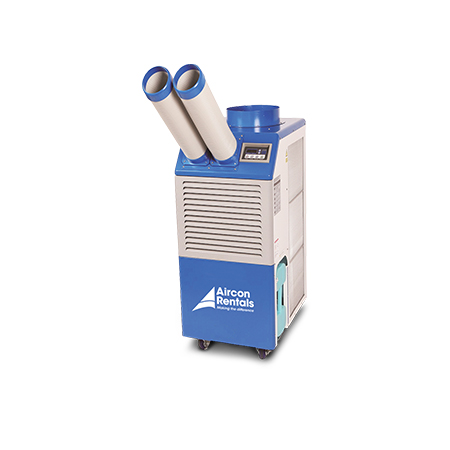

6.1kW Portable Cooling Unit

6.1kW Portable Cooling Unit

Rent Now   Print

This portable air conditioner features spot cooling for large areas where cooling of the entire area is not practical. A dedicated spot cooling thermostat controls the unit. This air conditioner can also be used in smaller areas for room cooling. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures and faults. On caster wheels for easy easy portability.

SKU: 1POR-2002 Category:

Technical Info

Total Cooling Capacity (kW): 6.1
Power consumption (kW): 2.3
Ambient Temperature (°C): 18-45
Refrigerant: R410A
Condensate tank (ltrs): 12
No. of Cool Air Outlets 2
Ambient temperature range (°C): 18-45
Setting Temperature (Room cool mode) (°C): 18-30
Setting Temperature (Spot cool mode) (°C): 0-30
Application Area (Room cool mode) (m2:) 50
Design Pressure – Hi/Low (Psig): 450 / 250
Indoor Air Flow (High/Low) (L/s): 410 / 380

Power Requirements

Phase: Single
Volts: 240
Hertz: 50
Power Consumption (kW): 2.3

Rated Current (Amps): 9.5
ERR (Btu/Wh): 8.9
Circuit Breaker (Amps): 15
Power Cord Length: 10

Physical Info

Height (mm): 1245
Width (mm): 560
Length (mm): 620
Weight (kg): 90

Features

  •  Temperature control
  •  Self – diagnostic function
  •  2 speed fan
  • Auto-restart (power interruption)
  •  Washable filters
  •  °C display

SAFETY DEVICES
• Compressor overload protector
• Anti-freezing thermister
• Full drain tank switch
• Automatic restart (power interruption)
• Compressor time delay program
• High pressure switch

Accessories

  •  Distribution Boards
  •  Condensate Pumps
  •  Single Phase Extension Leads
  •  Cable Cross Over – Single Lane
